Lot & Vision · Concept package · prepared for Sample estate
Modern Farmhouse Estate
Issued
2026-10-25
Revision
R1 · first concept
Lot8.00 acres500 × 697 ft
House, heated3,907 sq ft4 bed · 3.5 bath
Under roof2.7%of the lot, all buildings
Perimeter wallNonean open edge, as asked
Site pieces17plus 2 placed trees and furnishings
The estate
Photo-real concept images · tap a picture's button to see the 3D model it was made from

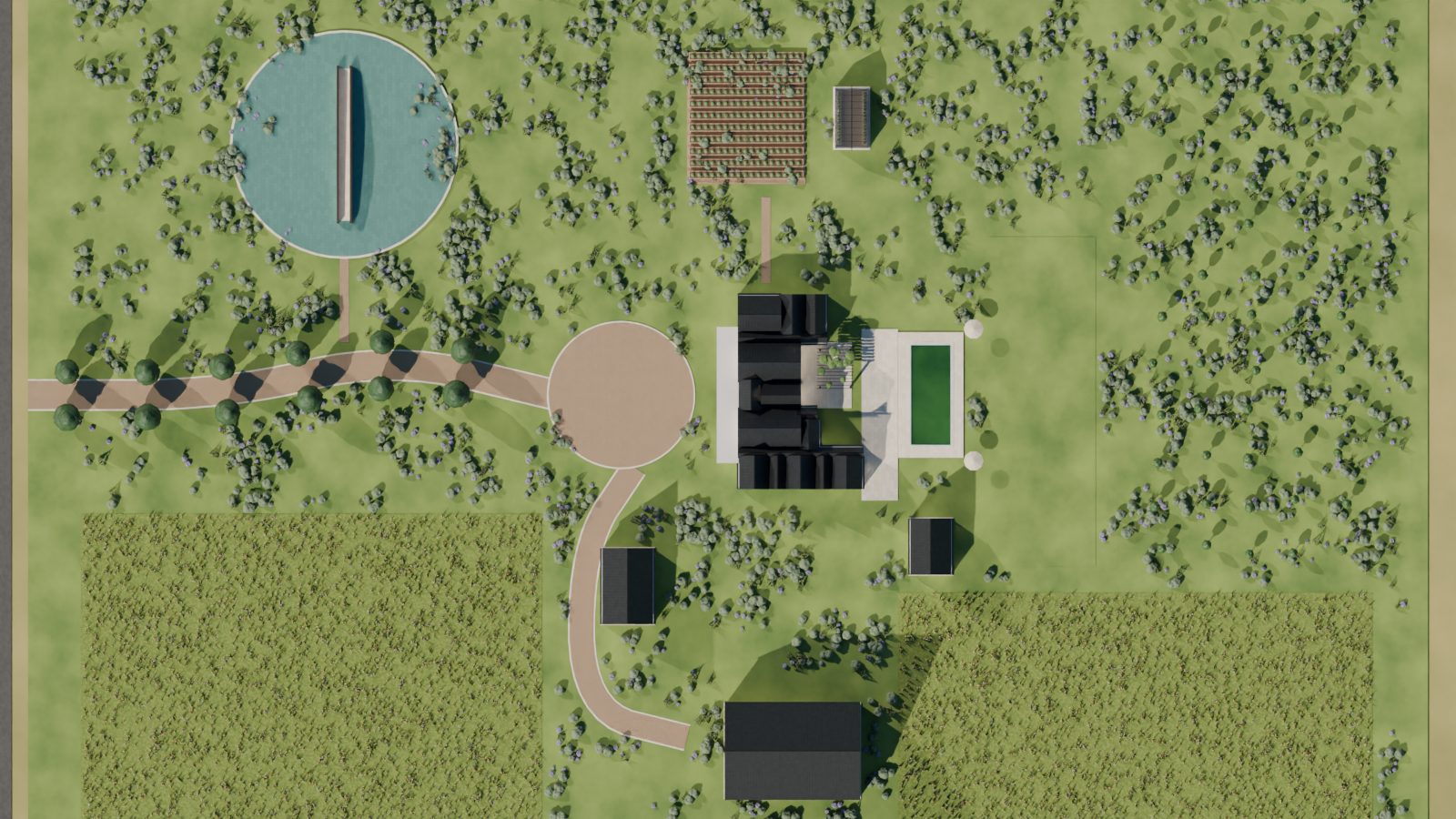

Site plan
North is up · street on the south edge · true scale
Open the editable plan
Drag, resize, rotate, add or remove anything at real scale, then press Save for Blender. Your saved plan is what the next round is built from.
This package includes
- Editable real-scale plan of the whole property
- 8 photo-real images, each with its 3D model view
- Site plan and room schedule
- Blender scene file (.blend) of the whole estate, attached to your delivery email
- One round of changes
The Blender scene comes as a zip attached to the email that brings you this page; the full-size version is available on request. Blender is free from blender.org.
What happens next
1 round of changes left in this package · extra rounds $195Your next round
- Open the editable plan and change anything: move, resize, add or remove pieces at real scale.
- When it looks right, press Save for Blender. If the page won't let you save, press Copy my design and send it back to us.
- Tell us anything the pictures should show differently: materials, planting, a view you want to see.
- We send the updated package within 2 business days.
| Revision | Date | What changed |
|---|---|---|
| R1 | 2026-10-25 | First concept |
Schedules
Every size is the real built size| Room | Size | Sq ft |
|---|---|---|

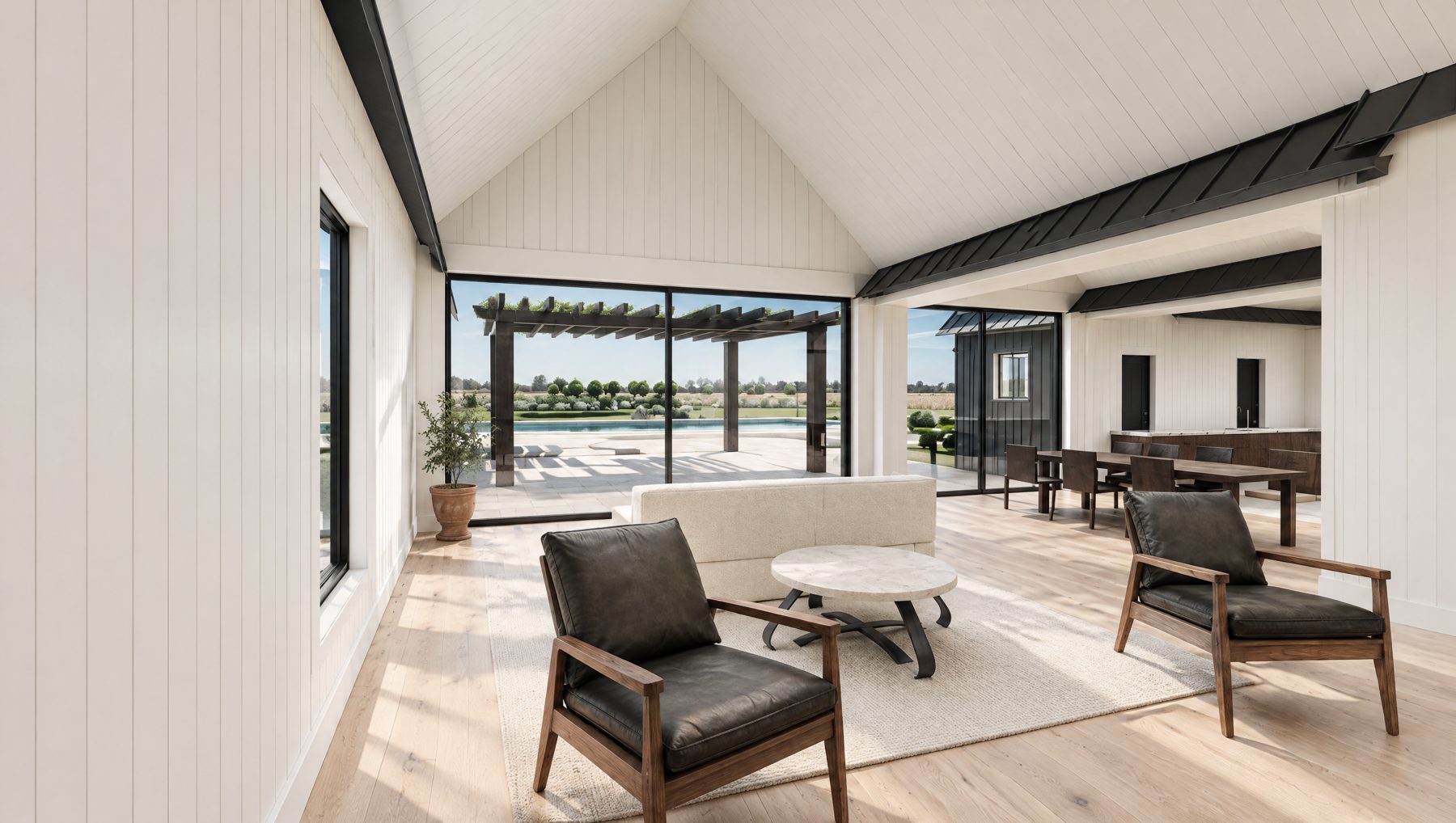

| Great room | 20 × 30 ft | 581 |
| Kitchen + island | 20 × 30 ft | 581 |
| Primary bedroom | 18 × 20 ft | 355 |
| Bedroom hall | 5 × 61 ft | 299 |
| Dining | 13 × 18 ft | 237 |
| Primary bath | 18 × 13 ft | 237 |
| Bedroom 2 | 15 × 15 ft | 218 |
| Bedroom 3 | 15 × 15 ft | 218 |
| Bedroom 4 | 15 × 15 ft | 218 |
| Primary hall | 5 × 43 ft | 210 |
| Primary walk-in closet | 18 × 10 ft | 178 |
| Entry | 13 × 11 ft | 151 |
| Laundry + mudroom | 13 × 10 ft | 129 |
| Bath 2 | 15 × 8 ft | 121 |
| Bath 3 | 15 × 8 ft | 121 |
| Powder bath | 7 × 8 ft | 54 |
| Heated total | 3,907 |
| Outdoor rooms at the house | Size | Sq ft |
|---|---|---|

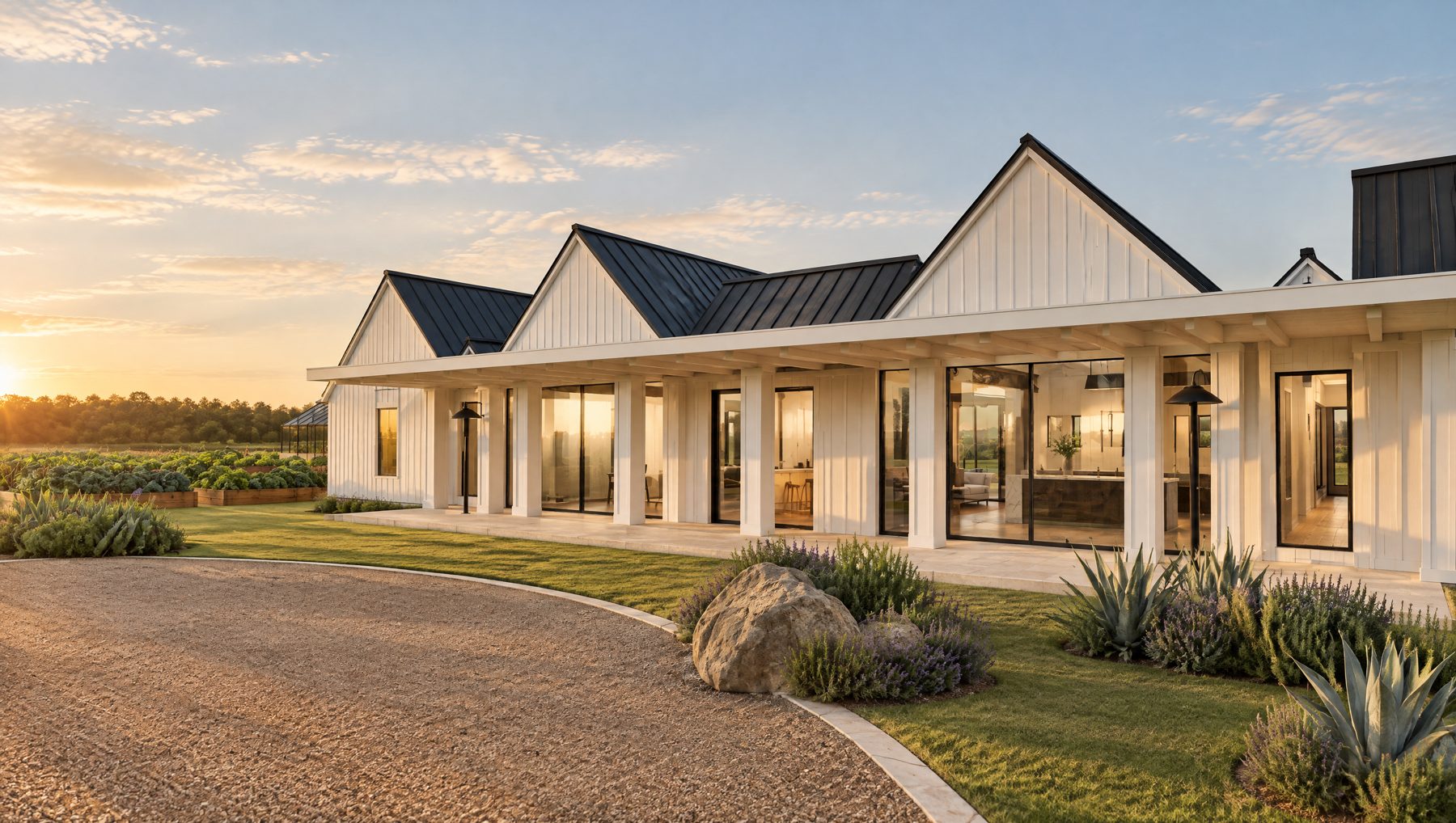

| Front porch | 66 × 10 ft | 689 |
| Back terrace | 33 × 26 ft | 861 |
| Vine pergola | 20 × 16 ft | 323 |
| Pool terrace | 85 × 18 ft | 1,539 |
| Across the site | What | Size |
|---|---|---|
| Arrival | ||

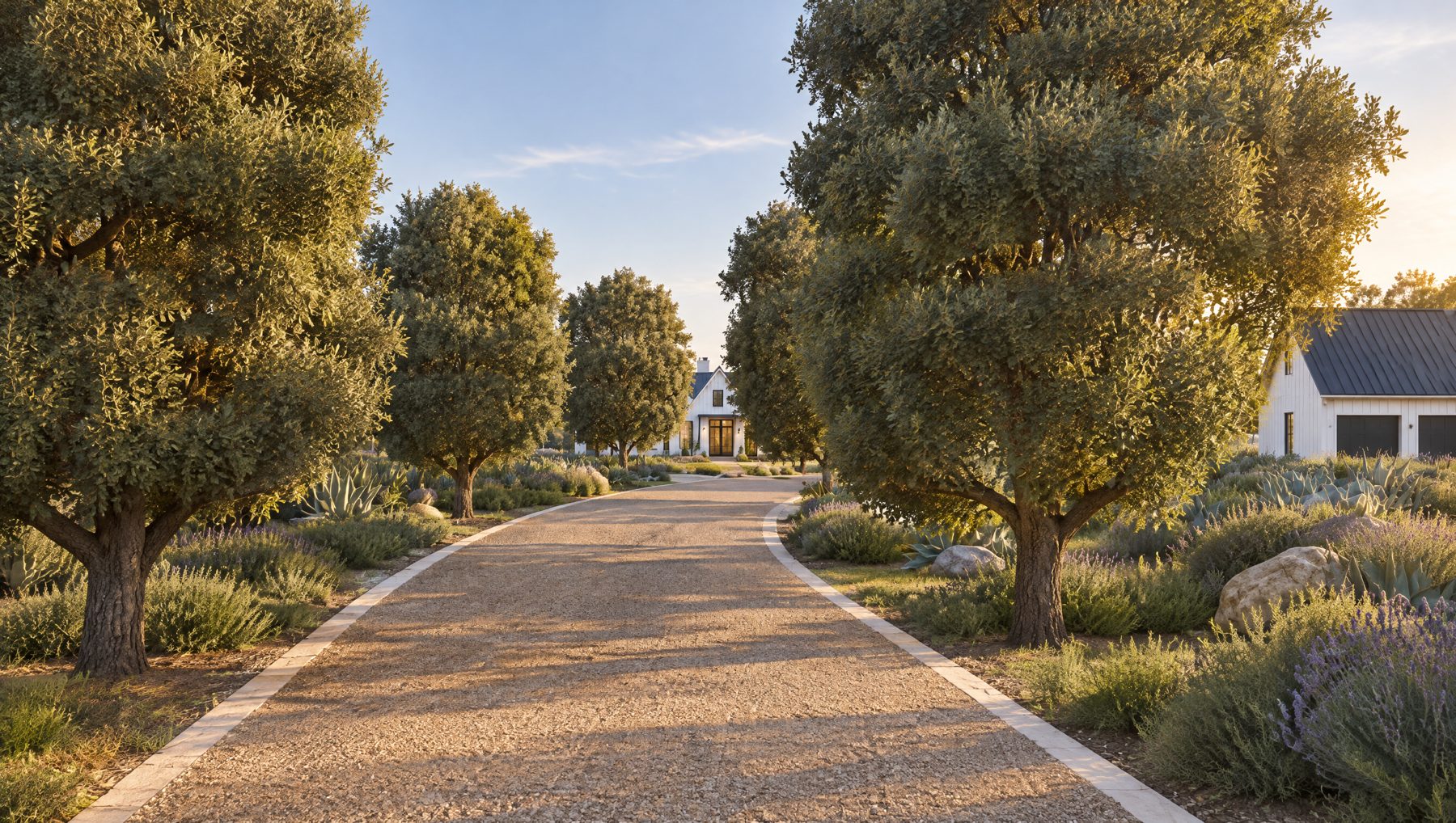

| Oak allee drive | Driveway | 267 ft long, 14 ft wide |
| Farm track to the barn | Driveway | 183 ft long, 12 ft wide |

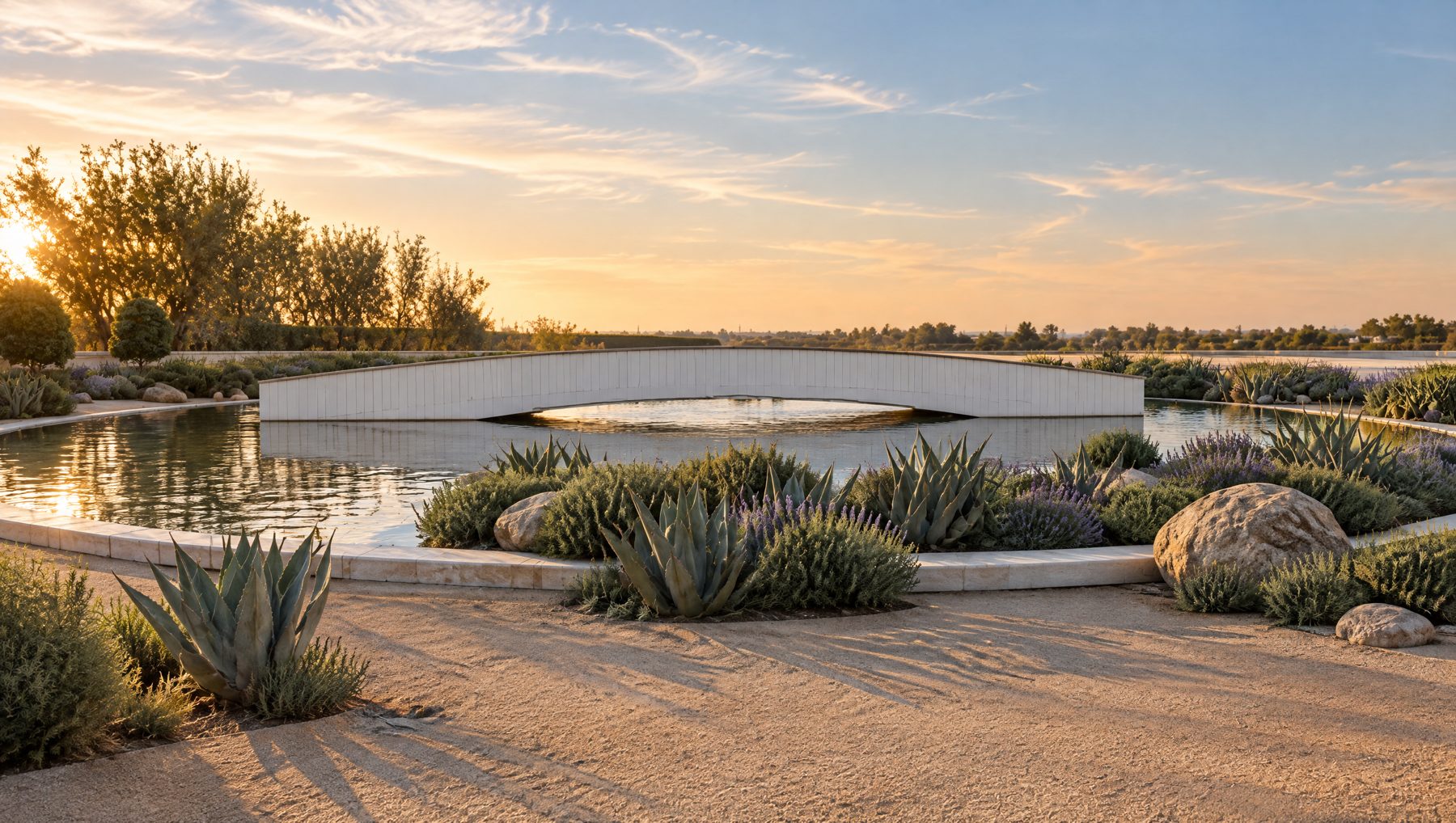

| Footbridge over the pond | Footbridge | 79 × 7 ft |
| Path to the pond | Garden path | 56 ft long, 5 ft wide |
| Garden path | Garden path | 43 ft long, 5 ft wide |
| Buildings | ||
| Pool house | Pool house | 26 × 20 ft |

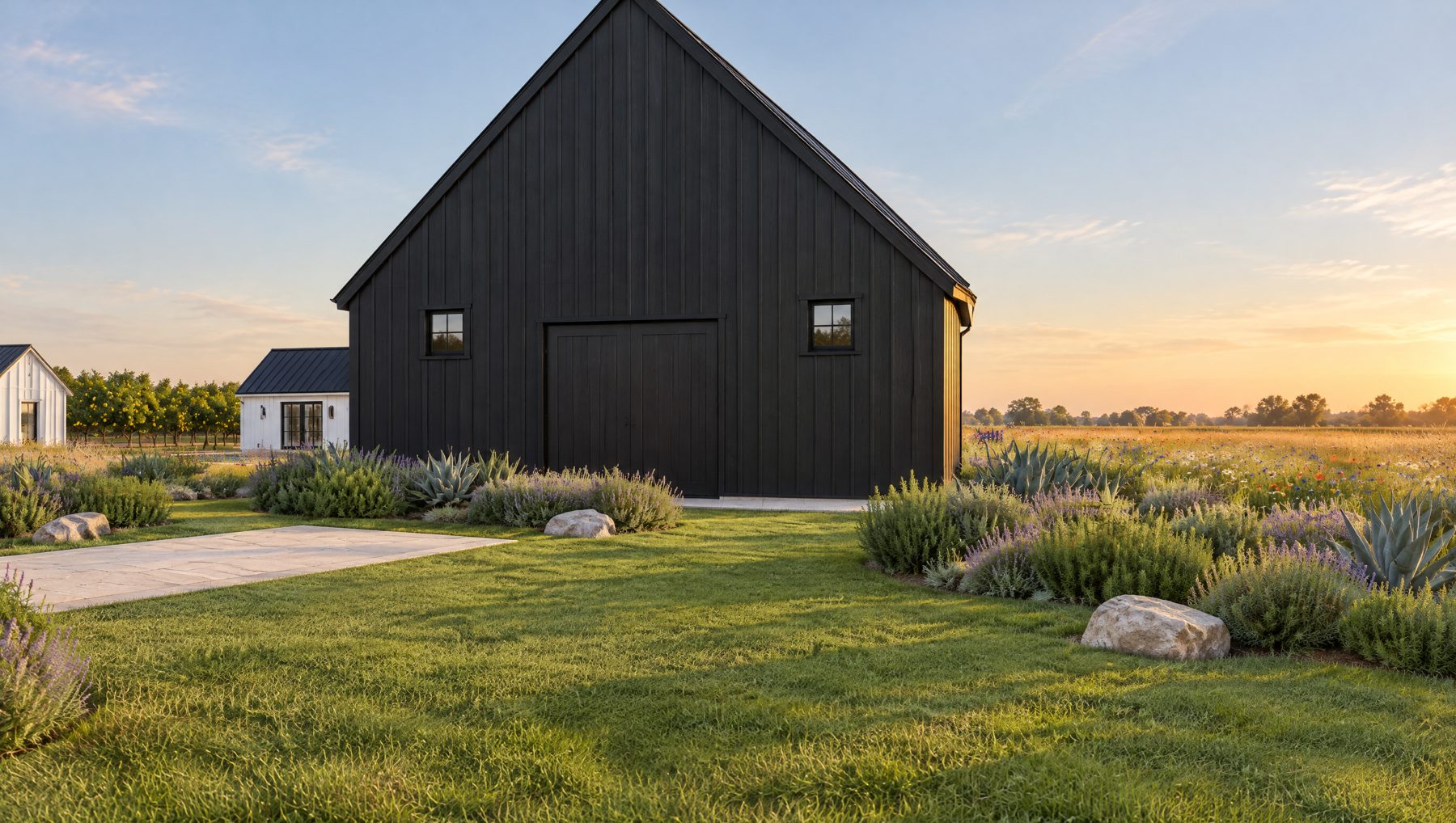

| Barn | Barn | 46 × 66 ft |
| Detached 3-car garage | Detached garage | 36 × 25 ft |
| Greenhouse | Greenhouse | 30 × 16 ft |
| Water, sport + play | ||

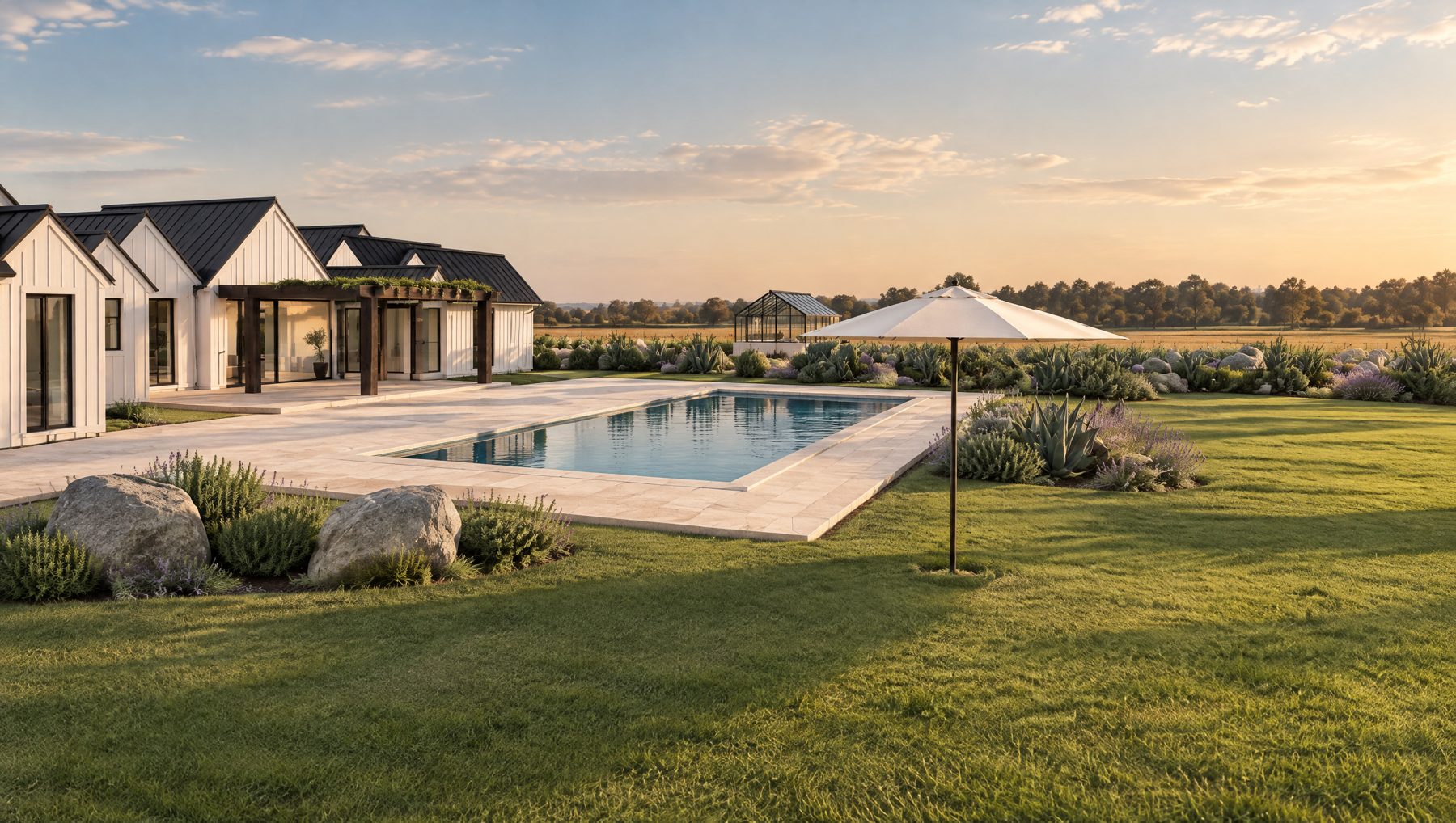

| Pool, 20 x 50 ft | Pool | 50 × 20 ft |
| Farm pond | Pond / rill | 112 × 66 ft |

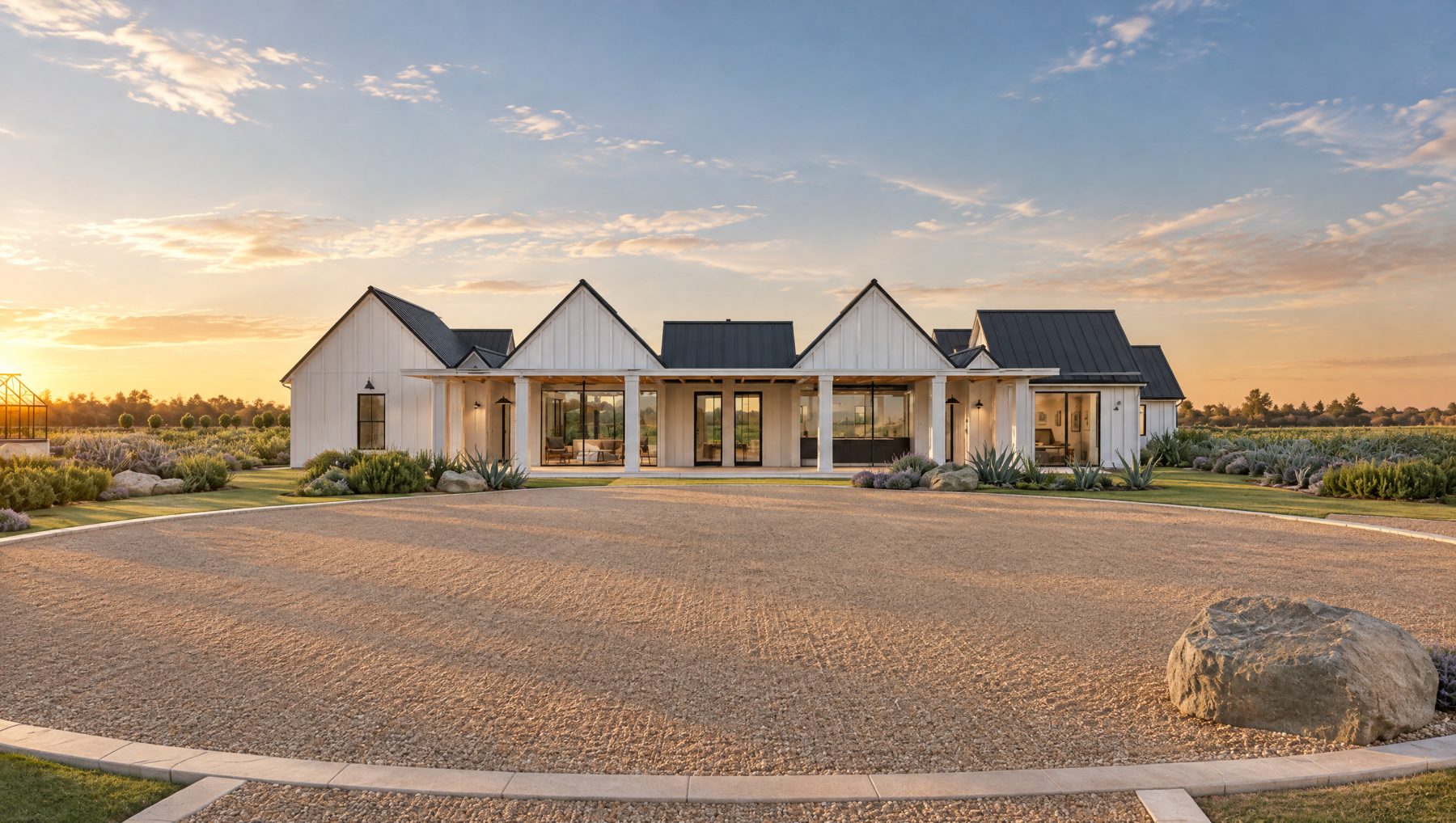

| Gravel motor court | Garden court | 72 × 59 ft |
| Land + planting | ||
| Lawn | Lawn | 164 × 52 ft |
| Wildflower meadow | Wildflower meadow | 177 × 230 ft |
| Paddock + hay meadow | Wildflower meadow | 138 × 236 ft |
| Citrus orchard | Orchard | 289 × 118 ft, lemon every 23 ft |
| Kitchen garden: raised beds | Garden beds | 66 × 59 ft |
Assumptions and what to check
Assumed in this concept
- Lot of 500 × 697 ft (8.00 acres), street along the south edge, flat ground, Sonoma County, California.
- Tree-lined drive.
- House as asked: 4 bed / 3.5 bath, about 3,900 sq ft heated, single storey, 3-car garage.
- Style asked for: "Modern farmhouse, white board siding, black metal roof". Built in our closest style, Modern farmhouse: white board siding, black standing-seam gable roofs, tall black-framed windows.
- Every must-have placed on the site: pool, pool house, barn, greenhouse, kitchen garden, tree-lined drive, wildflower meadow, pond + footbridge, citrus orchard.
- Also asked for: a front porch, a paddock by the barn and a farm pond by the drive.
- Left out, as asked: perimeter wall, tennis.
Check with the county before building
- Front and side setbacks (Sonoma County, California), and lot coverage.
- Pool barrier and fencing rules.
- Accessory building rules for the pool house.
- Agricultural building rules for the barn.
- Fire-safe planting and defensible-space rules for the meadow.
- Pond depth and barrier rules.
Concept images, not construction documents. Pictures are illustrations made from a 3D model and finished with AI; they are not photographs of a real property. Plans are for planning and discussion only and are not for permits or construction. A licensed architect or engineer must prepare any drawings used to build.
